ENIGMA-TF universal no-clean high-pitch SMD tacky paste solder flux with QC-tracer for Ni/Au plating and ENIG PCBs finishes (ROL0)

    Solders Silver-containing alloys to ENIG PCB with Ni/Au plating

    1 1

    STIRRI®

    TF-SNG-005-K

    Packaging
    $10.62 USD
    $10.62 USD $10.62 USD
    Sale Sold out

    In stock

    STIRRI® ENIGMA-TF™ - no-clean low voiding REACH-compliant ROL0 tacky solder flux for SAC alloys and ENIG PCBs with for Ni/Au plating

    - Industrial-grade wetting capabilities.
    - Excellent ability to hold components in place.
    - Not-corrosive. No-clean - can be left on PCB.
    - Slow burning ratio - long lasting.
    - Optical UV-tracer exposing unactivated residue.
    - Pleasant non-chemical scent.
    - Environmentally/health friendly.

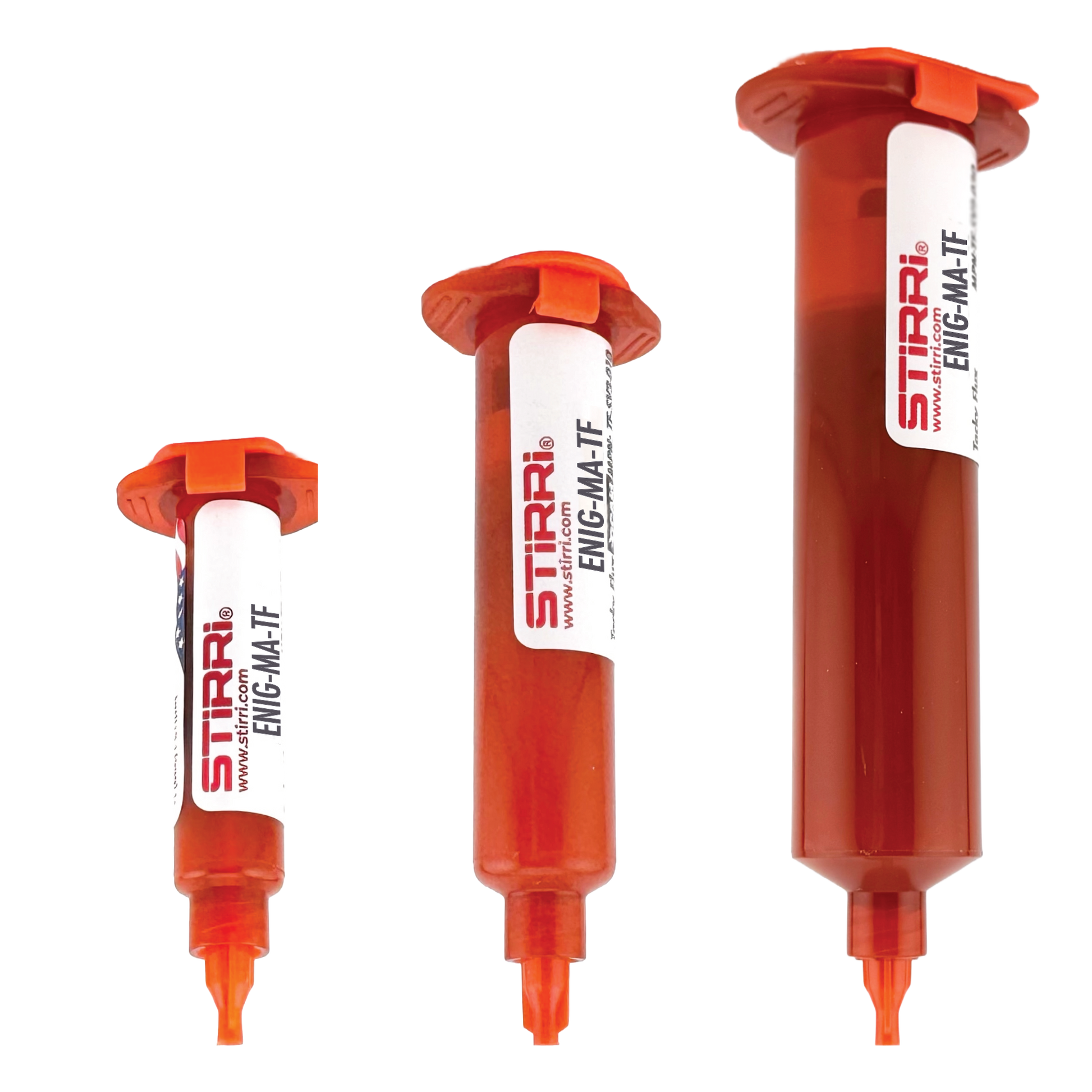

    Packaged in amber syringe tube offering 24 months shelf life

    - Long lasting and economical - uses modernized fire-retardant process preventing the flux from burning away too fast. Viscosity - 20-50 (Malcom @ 10 RPM/25°C (x103mPa/s)) - suitable for industrial machined placement as well as handcraft repairs and hobby use. Halide-free (<0.05%). Surface insulation resistant. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop).
    - Clear residue can be easily removed with hot air, foam swab and basic Solvents like Isopropanol. ROL0 classification - non-corrosive, doesn't short components, can be left on board for multiple SMT assemblies (manufacturer recommends cleaning all flux residues at all times to avoid board contamination or voltage leakage on circuits with high impedance, also non-activated residue may absorb moisture from air and subsequently cause corrosion).
    - Industrial air-syringe intended for professional use with pneumatic dispensers, do not remove the piston stopper! Do not discard original nozzle cap, tighten the cap while not using the flux - flux may dry out upon extended contact with air. Does not include any dispensing components like plunger or tip which can be necessary to manually control the flow. Keep in a room temperature - do not refrigerate.

    Product Description

    Next generation REACH-compliant universal no-clean tacky paste flux for soldering electronics. Improved formula demonstrates mighty action, smooth flow from the syringe and excellent ability to hold components in place. Clear residue is fully translucent allowing unobstructed control over the soldering process. Contains QC-Aid™ optical tracer for an immediate visual contamination inspection highlighting residues in UV/blacklight. The flux has a pleasant non-chemical scent. REACH-compliant making soldering incredibly easy and fun without harming the environment or human health.

    Complete the assembly with STIRRI HydraCoat™ conformal nano-coating. HydraCoat shields the assembly in 8 seconds. PCB continues to work even if fully submerged!

    Strong points:

    - Industrial-grade wetting capabilities.
    - Excellent ability to hold components in place.
    - Clear residue resisting to turn brown under high-heat.
    - Not-corrosive. No-clean - can be left on PCB.
    - Slow burning ratio - long lasting.
    - QC-Aid™ for instant visual inspection of cleaning.
    - Pleasant non-chemical scent.
    - Environmentally/health friendly.

    STIRRI® is a modern prosumer product line made in the USA to satisfy demands for next generation high-end soldering chemicals.

    TACK & VISCOSITY: Contains sufficient amount of solids to stay put on the PCB - doesn’t spread over, but also not too thick - easy to clean. Holds components in-place yet allows for an easy repositioning by hot air. Smooth flow from the syringe - suitable for industrial component placement machines as well as handcraft rework and hobby use. Suspends BGA spheres creating a perfect activation environment for soldering leaded or lead-free solder balls or SMD solder paste - all-purpose flux!

    CLARITY & ODOR: Clear residue contains QC-Aid for instant PCB contamination inspection - the aid will glow in UV highlighting remaining residues for instant spot-cleaning. QC-Aid - Everyone can QC!™.  Cloud-free translucent material provides for a consistent unobstructed view of solder joints and IC pins while offering ultimate control over the soldering process and filling the air with pleasant non-chemical scent. Quick fix without fumes extractor will only make a workshop smell nice!

    LONGEVITY & RESIDUE: Maintains stable performance under extended exposure to heat without turning into a dark gooey goop. Suitable for multi-step assembly - get back to a project a day or two later, once heated the flux will flow again without dropping performance. Dispensed in an amber syringes protecting the flux from the harms of environment extending the shelf life up to 2 years - a single tube lasts for a very long time!

    EASY SOLDERING & DESOLDERING: Implements upgraded booster for copper ions, visually noticeable while wicking the workspace regardless of the alloy leaded or lead-free. Instant action - quickly wets lead-free or leaded alloys delivering perfect shining joints. Clear residue can be easily removed by hot air, foam swab or HydraSweep Isopropanol.

    Suitability

    Designation

    ROL0 classification - no-clean and not corrosive. Halide-free (<0.05%). Surface insulation resistant. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop)

    Viscosity

    20-50 mPa/s (Malcom @ 10 RPM/25ºC (x 10³mPa/s))

    Disclaimer

    The information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having relevant skills at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process and take safety measures. Manufacturer/resellers assume no liability for results obtained or damages incurred through the application of the data presented.

    Cleaning "No-Clean"

    “No-clean” indicates cleaning method as defined by IPC standard and does not mean that the flux leaves no residue. No-clean rather means that the flux can be left on PCB for several consecutive SMT assemblies but also won’t cause corrosion if left indefinitely. However, cleaning can be necessary and it is desirable. No-clean fluxes are easily removed using industrial solvents in ultrasonic devices or using commercially available flux residue removers like STIRRI HydraSweep™.

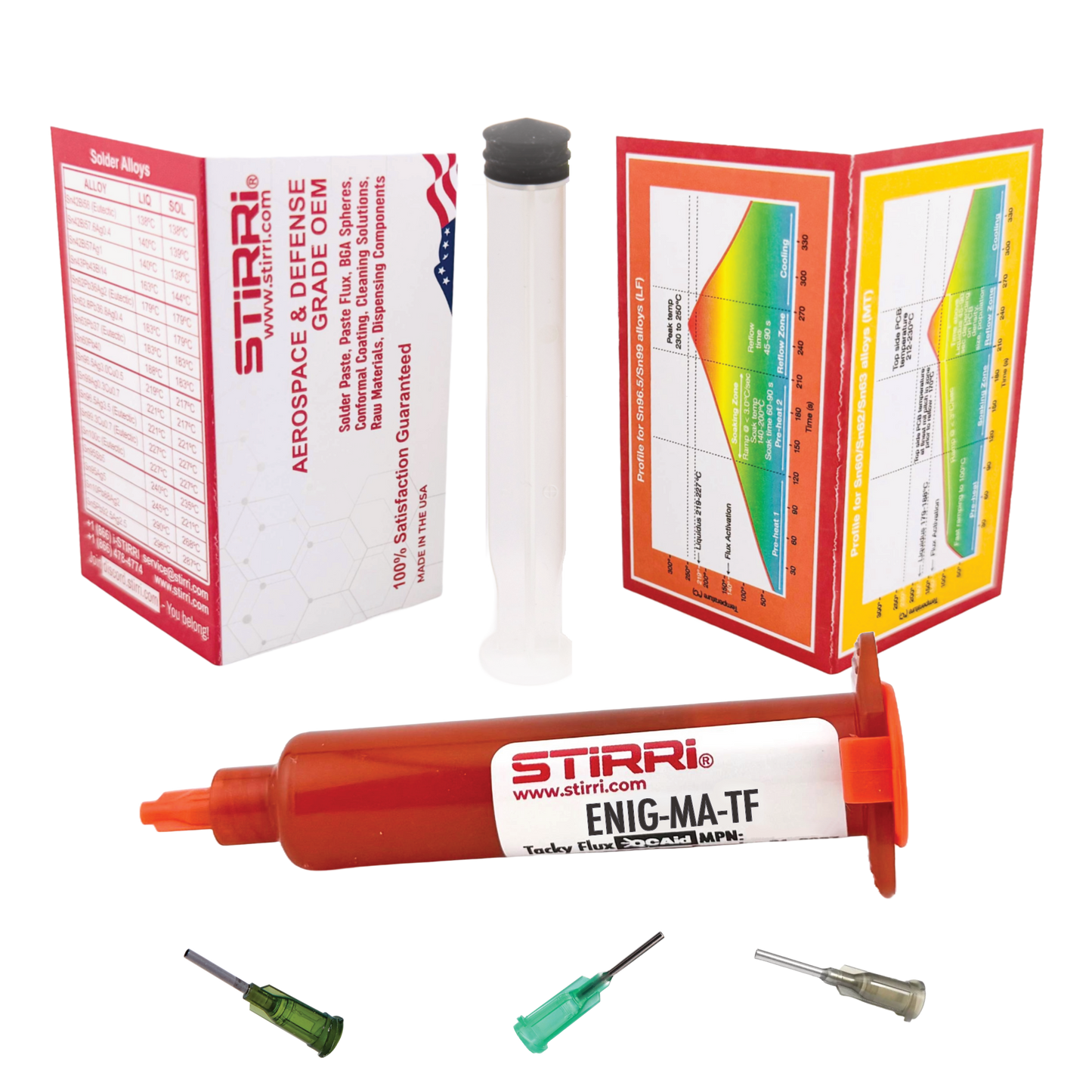

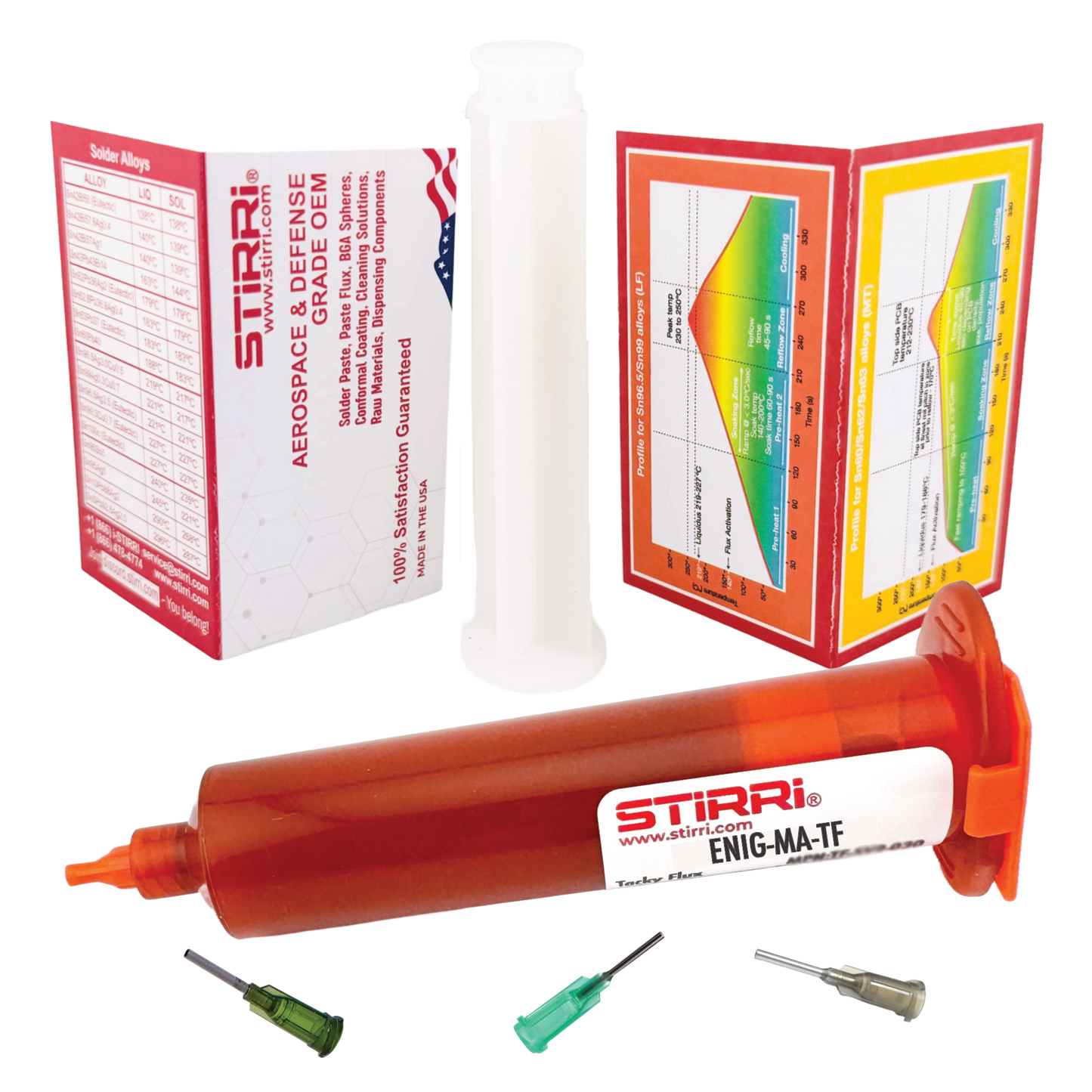

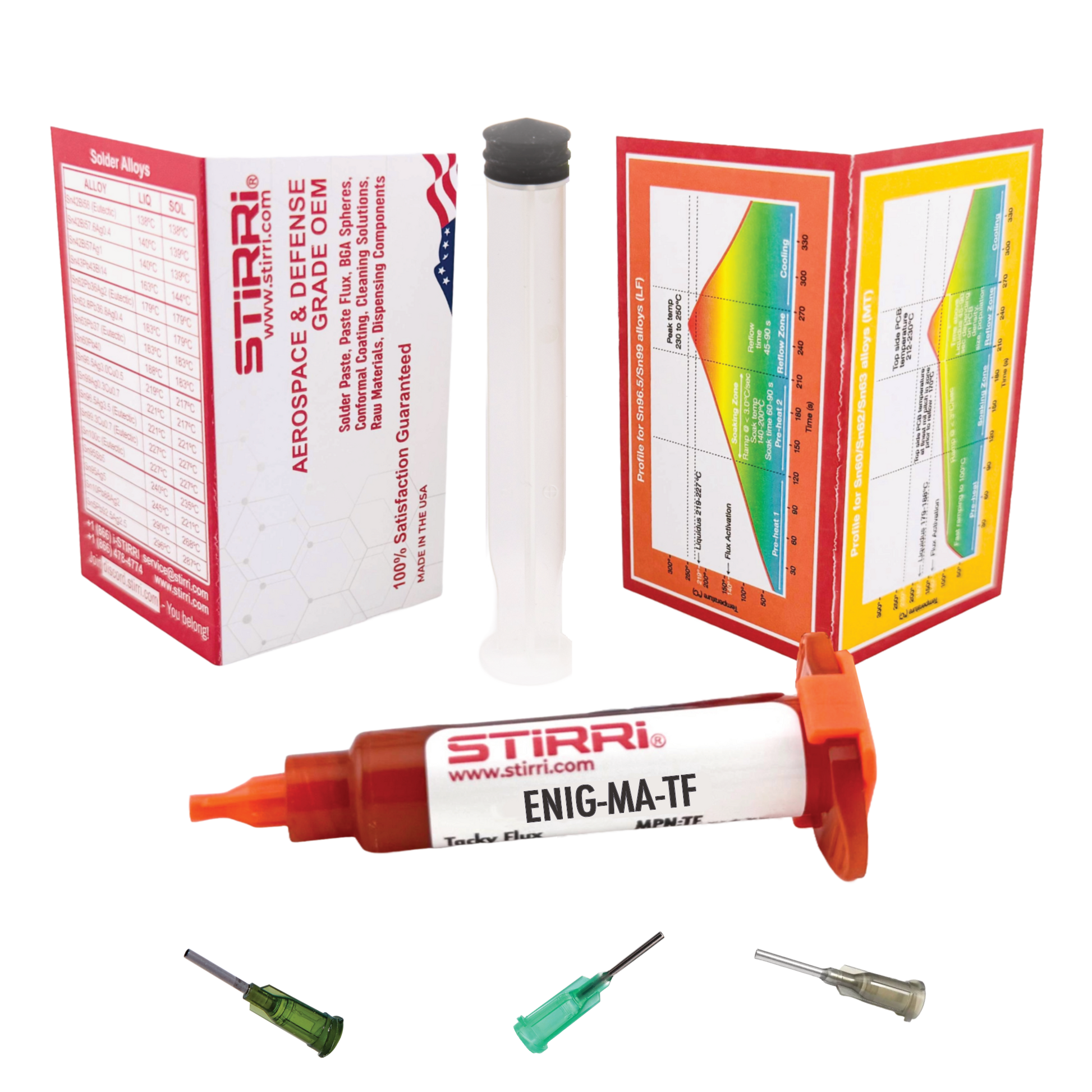

    Dispensing Kit

    This product does not include any Dispensing Kit - a separate purchase!

    Dispensing Kit is an add-on for manual dispensing, used to create a pressure with a plunger similarly to a medical syringe.

    Air syringes intended for pneumatic dispensing machines use a piston stopper instead of a plunger. Do not remove the piston as it delivers the best seal preventing contact with air!

    Compliance

    This material is certified REACH-compliant - does not use any raw materials from the REACH restricted list of substances of high concern.
