    STIRRI®

    SKU:TF-HHF-005

    Packaging
    Regular price £9.00 GBP
    Regular price £9.00 GBP Sale price £9.00 GBP
    Sale Sold out

    In stock

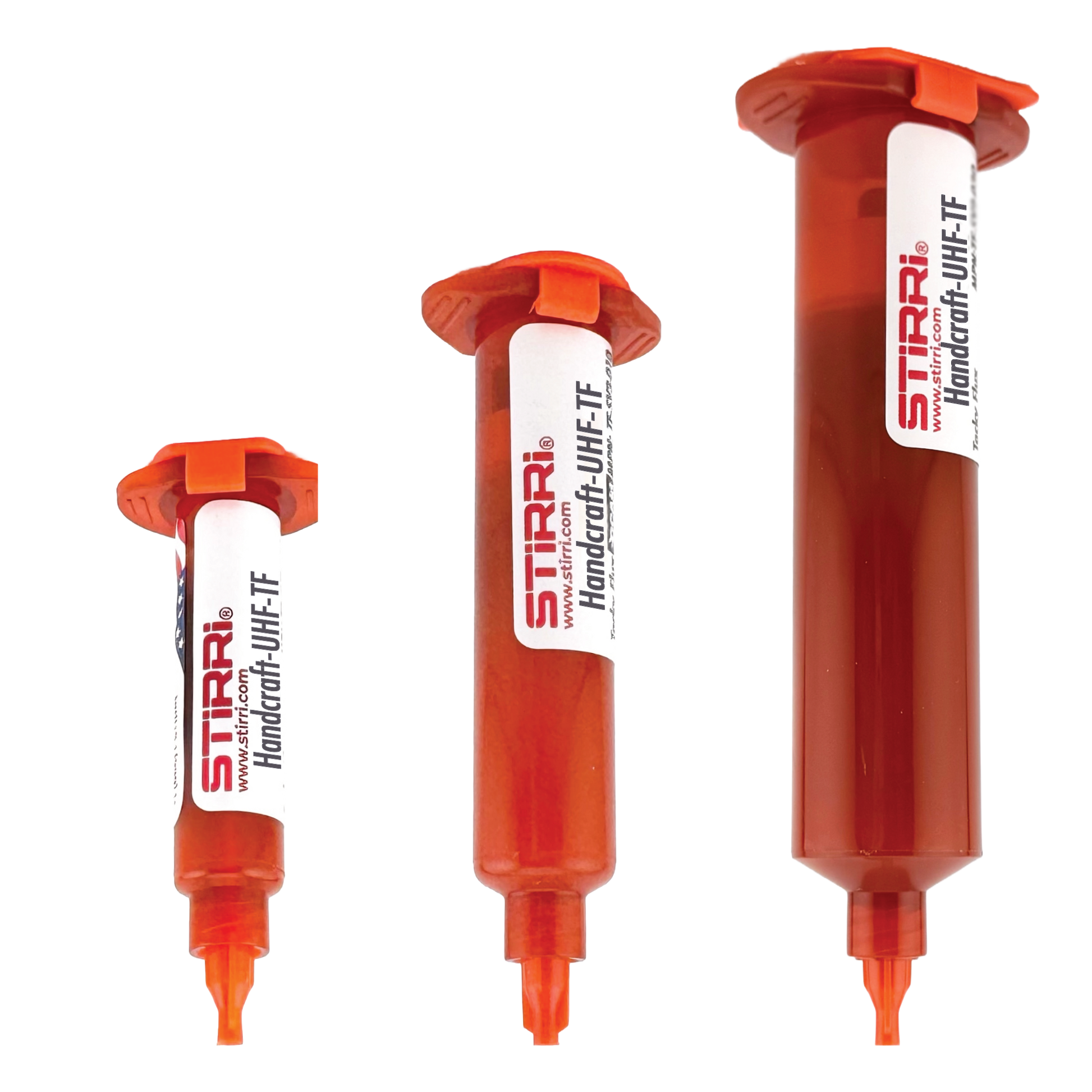

    Handcraft-UHF-TF™ is a universal no-clean halogen-free soldering tacky paste flux

    Clear flux body and clear residue make it fantastic choice for hand-soldering

    Contains QC-Aid™ optical tracer for instant visual contamination inspection. QC-Aid - Everyone can QC™

    Wide application range

    Top-tier aerospace & defense grade material can be safely used for hand-soldering electronics, automotive repairs, IC-chip replacement, BGA-reballing, gaming console repair, applications requiring halogen-free no-clean clear residue with incredibly low voiding.

    Performance

    Full body of enriched pine crystal rosins creating a transparent coating layer over the soldering area effectively blocking oxygen from the solder joints and thus allowing metals to bond - guaranteed!

    Traits:

    • Slightly yellow fully transparent rosin-rich flux body with clear non-corrosive residue. A truly no-clean flux - halogen-free, doesn't short components! REACH-compliant. Can be left on PCB or easily removed by hot air or basic solvents like Isopropanol.
    • Used in MT solder paste and hand-soldering electronics/automotive repairs. Smooth dispensing and flow, excellent ability to hold components in place. Easy flowing under IC chips. Universal for leaded and lead-free alloys.
    • Viscosity – 30-50 Pa/s (Malcom @ 10 RPM/25°C (x10'3Pa/s)) Halide-free (<0.05%). Passes SIR (Surface Insulation Resistance) test. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop). 96°C-250°C temperature range.
    • Offers spectacular low-voiding and truly no-clean performance in many professional soldering areas including SMD solder paste. Best performs with mid-temp range tin/lead alloys melting at 150ºC-200ºC.
    • Contains QCAid™ - residual optical tracer glowing in UV blacklight allowing for immediate visual detection of contaminated PCB areas. QCAid - Everyone Can QC™

    SMD-Paste values:

    • Stencil life @ 30-70% RH - up to 16 hours - one of the longest values on the market allowing for a long process window and next day completion.
    • Viscosity (jars, cartridges): 100-150 Pa/s (print-grade) and 80-100 Pa/s (Dispenser-grade), Tack value: 42-44g
    • Stable wetting performance and low voiding soldering on most PCB finishes. Halogen-free clear residue. Sharp definition at high printing speeds up to 200mm/sec, enclosed print-head compatible.

    Origin

    Made in the USA using certified REACH-compliant raw materials, STIRRI® specialty SMD-series have been helping the soldering community worldwide to reliably connect, clean and protect its craft. To see the difference, order your kit today!

    Suitability

    Designation

    ROL0 classification - no-clean and not corrosive. Halide-free (<0.05%). Surface insulation resistant. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop)

    Viscosity

    30-50 mPa/s (Malcom @ 10 RPM/25ºC (x 10³mPa/s))

    Disclaimer

    The information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having relevant skills at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process and take safety measures. Manufacturer/resellers assume no liability for results obtained or damages incurred through the application of the data presented.

    Cleaning "No-Clean"

    “No-clean” indicates cleaning method as defined by IPC standard and does not mean that the flux leaves no residue. No-clean rather means that the flux can be left on PCB for several consecutive SMT assemblies but also won’t cause corrosion if left indefinitely. However, cleaning can be necessary and it is desirable. No-clean fluxes are easily removed using industrial solvents in ultrasonic devices or using commercially available flux residue removers like STIRRI HydraSweep™.

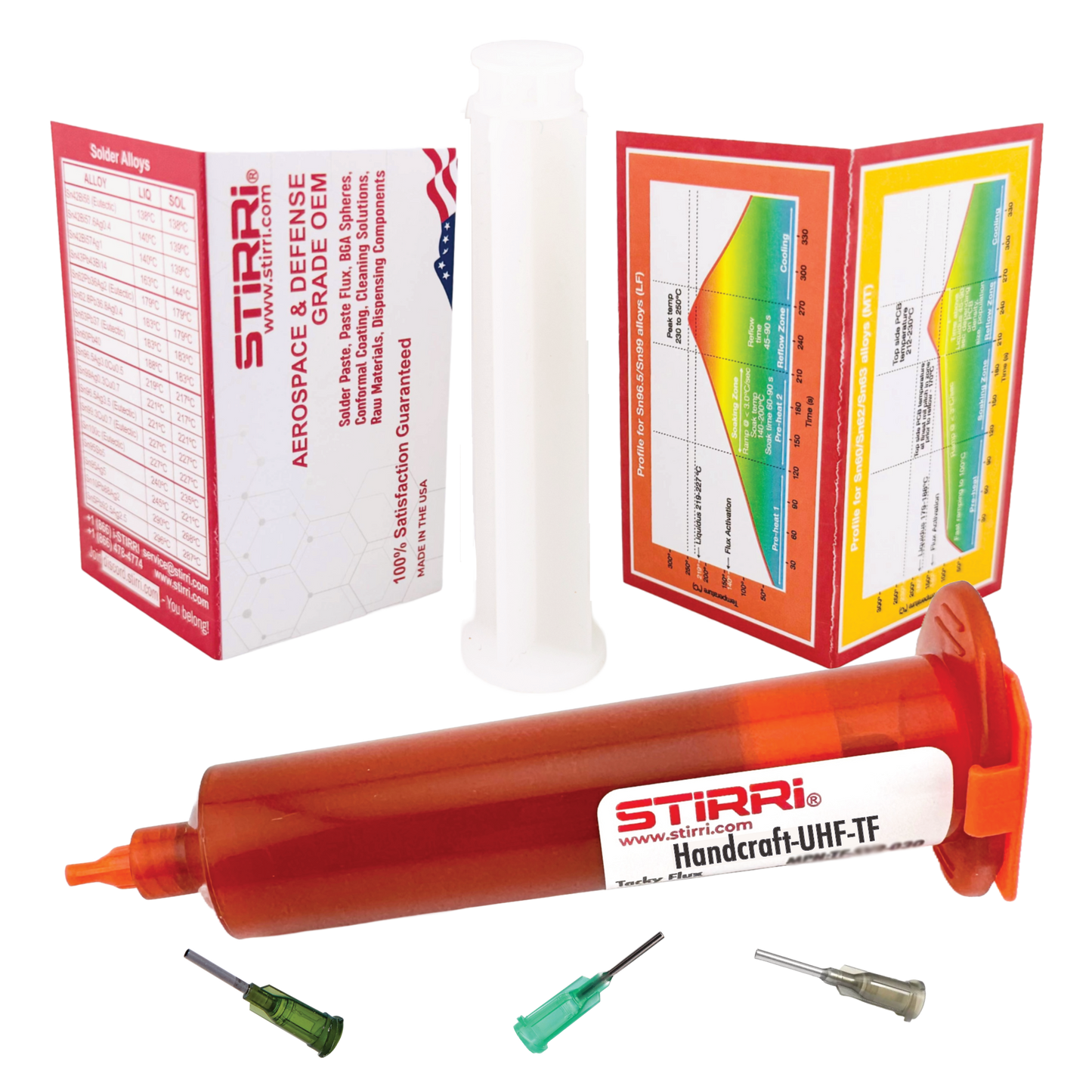

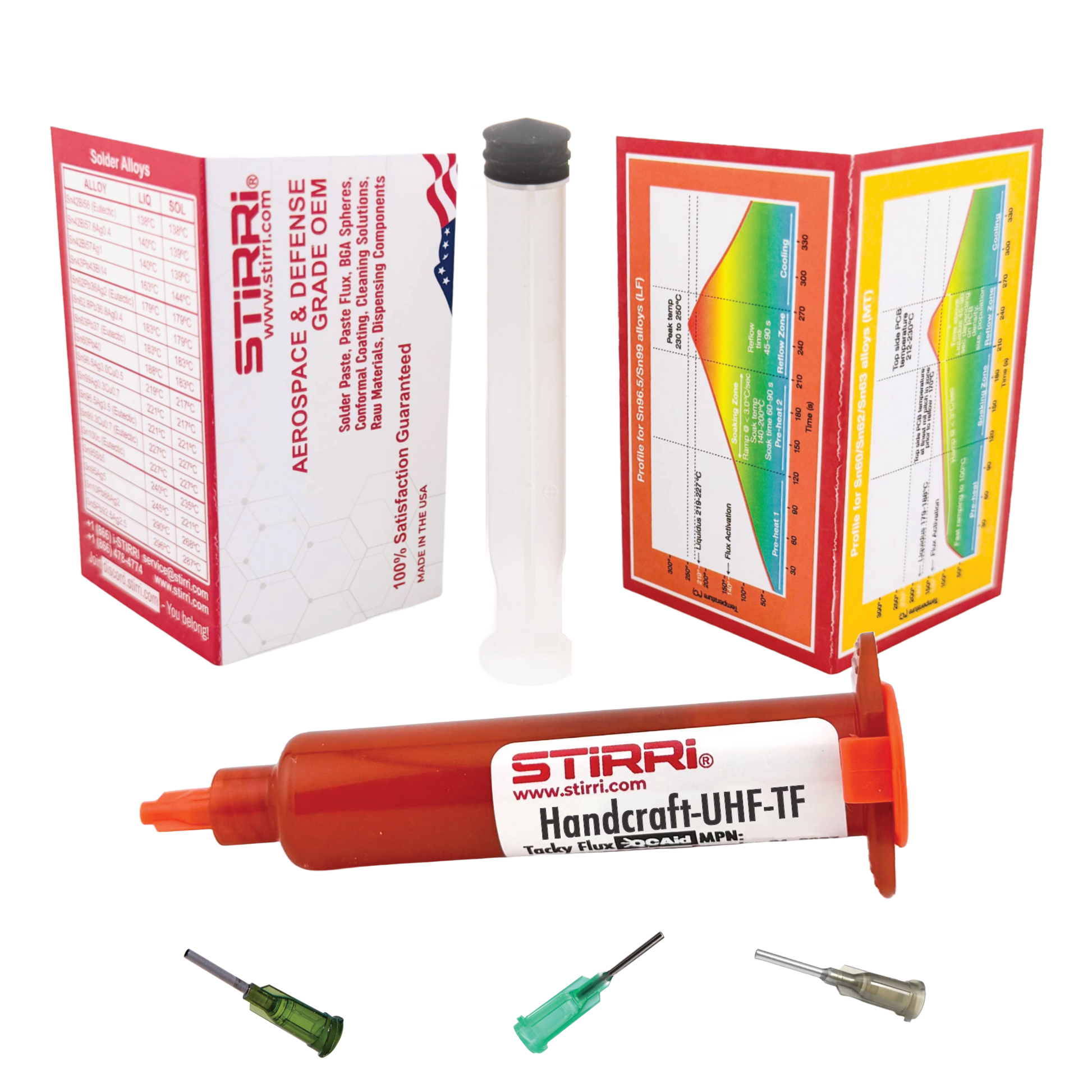

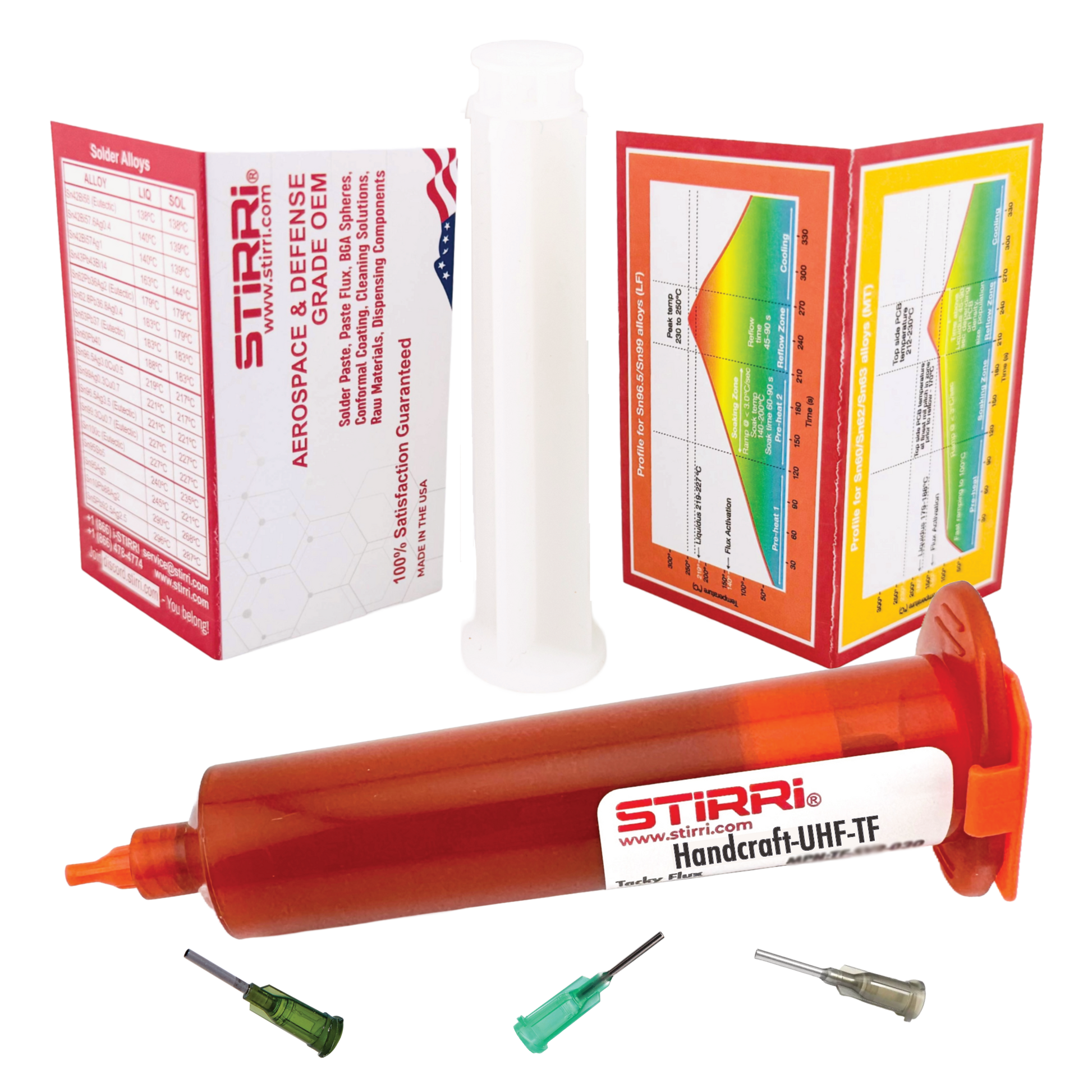

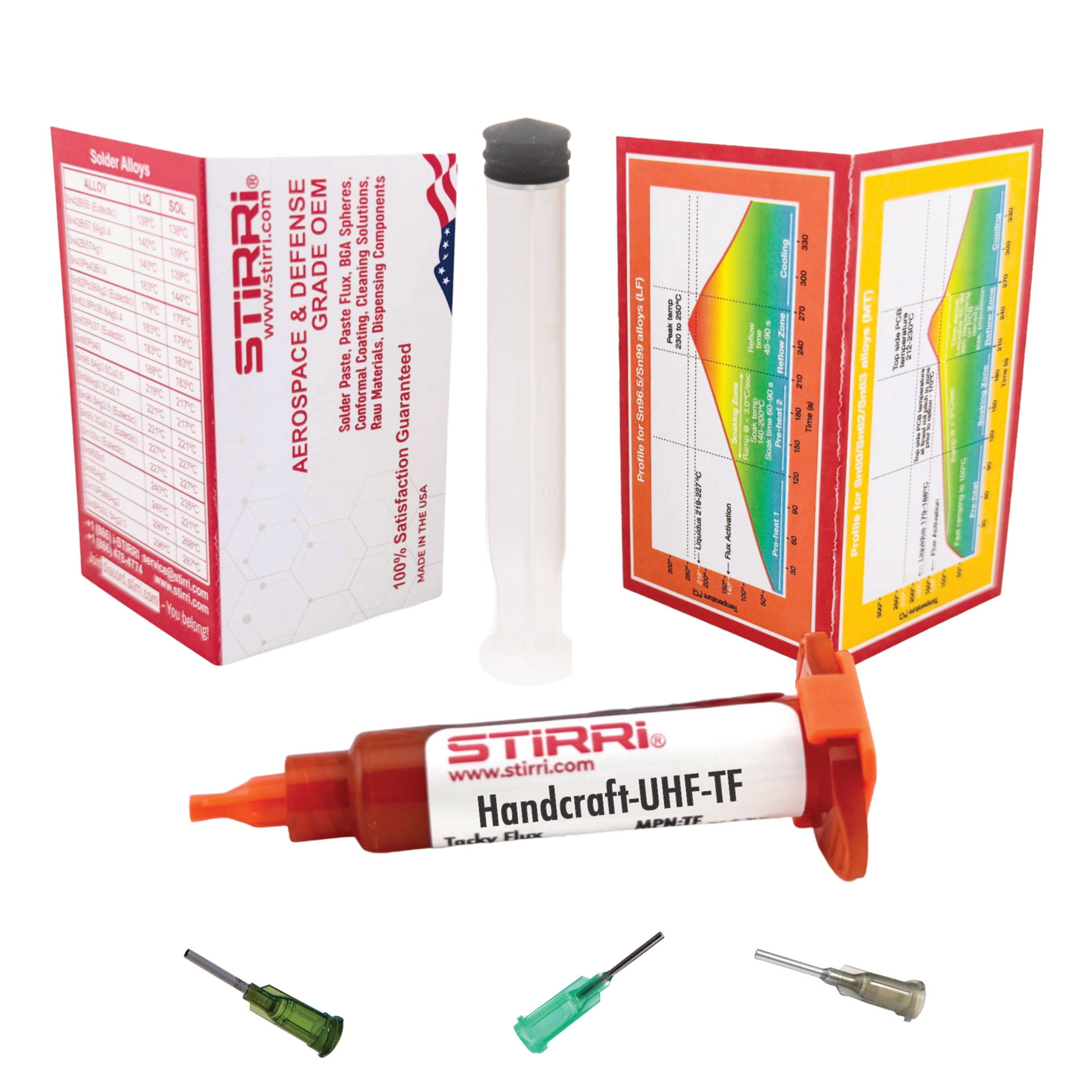

    Dispensing Kit

    This product does not include any Dispensing Kit - a separate purchase!

    Dispensing Kit is an add-on for manual dispensing, used to create a pressure with a plunger similarly to a medical syringe.

    Air syringes intended for pneumatic dispensing machines use a piston stopper instead of a plunger. Do not remove the piston as it delivers the best seal preventing contact with air!

    Compliance

    This material is certified REACH-compliant - does not use any raw materials from the REACH restricted list of substances of high concern.
