    STIRRI®

    SKU:TF-SV2-005-K

    Tacky Flux Packaging
    Regular price $6.78 USD
    Regular price $6.78 USD Sale price $6.78 USD
    Sale Sold out

    In stock

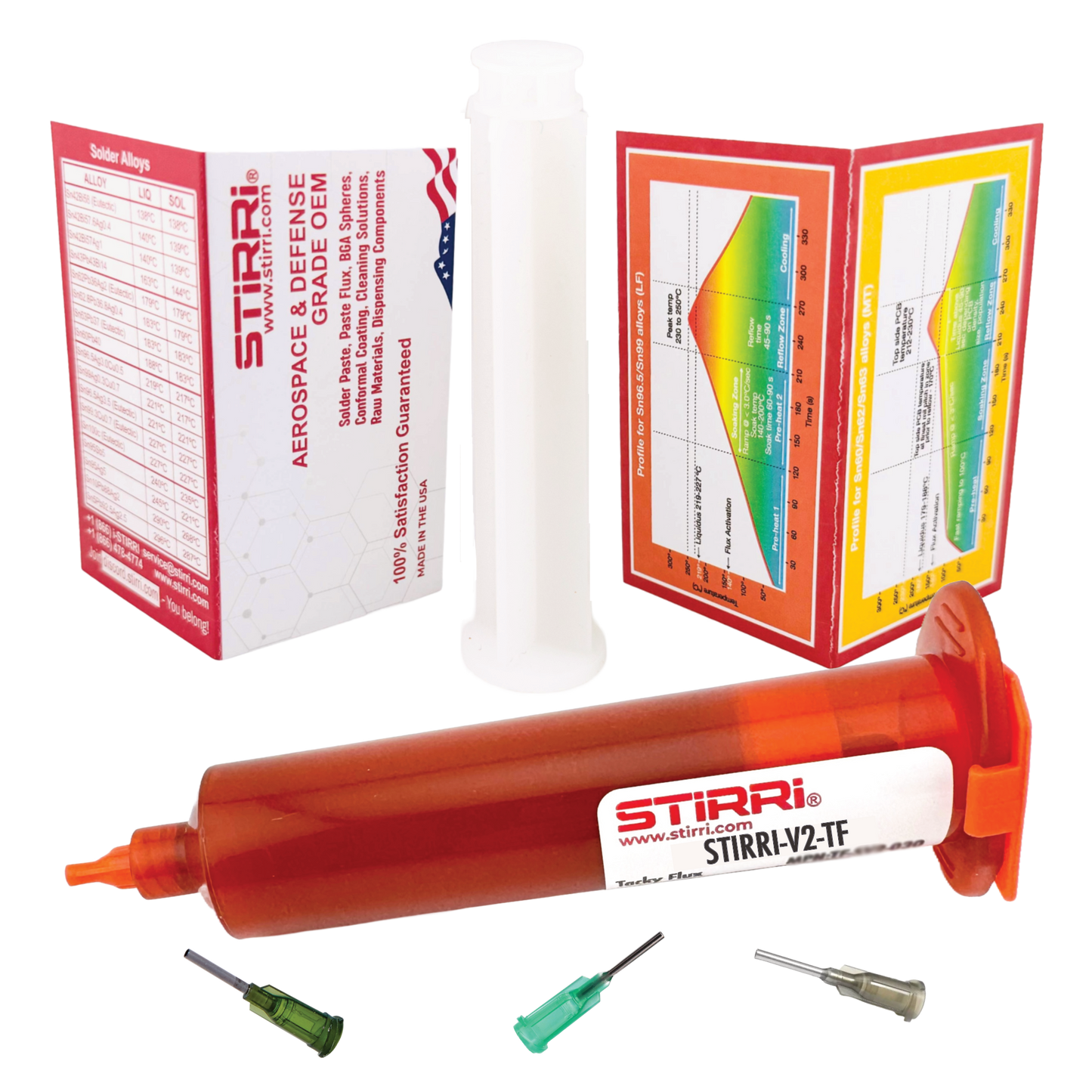

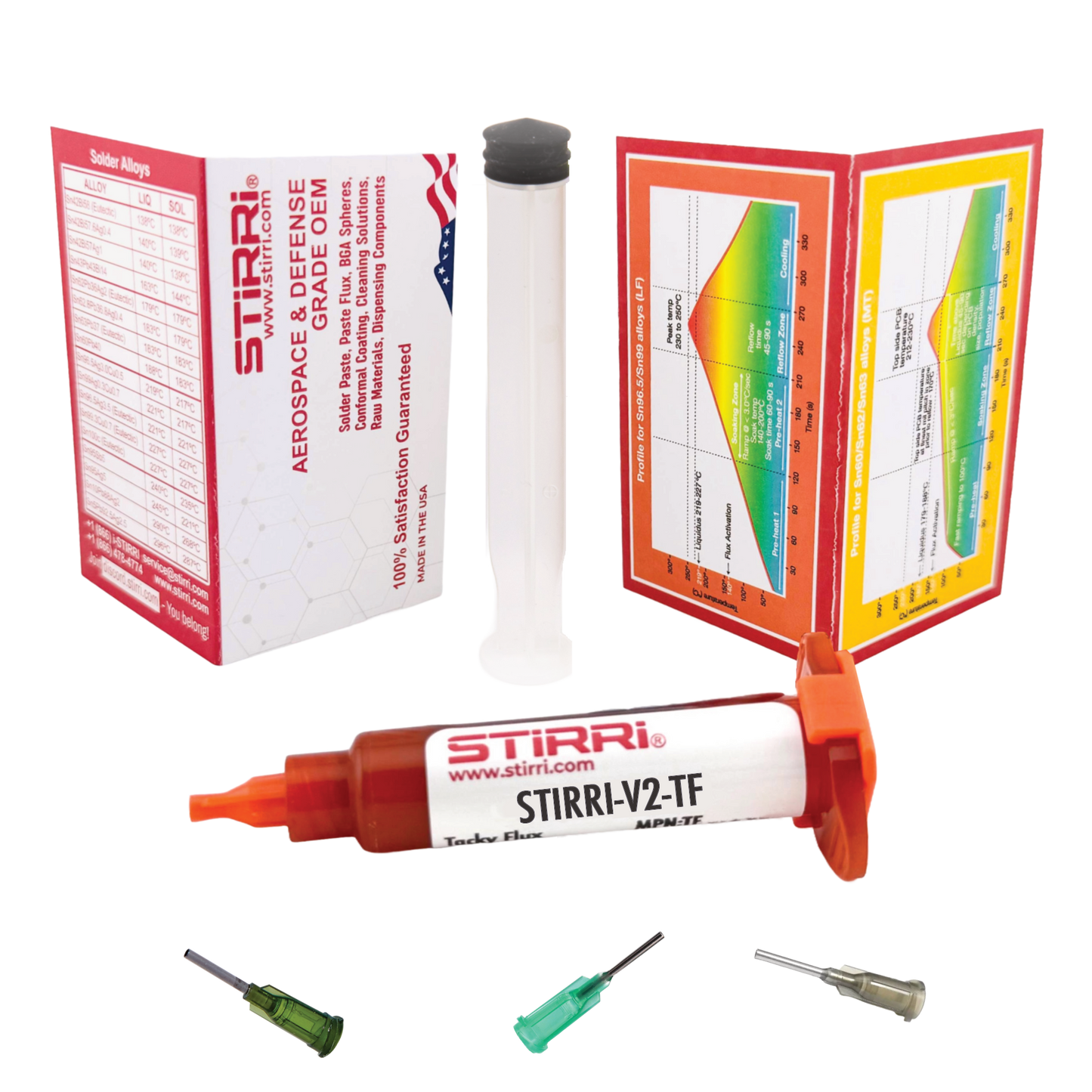

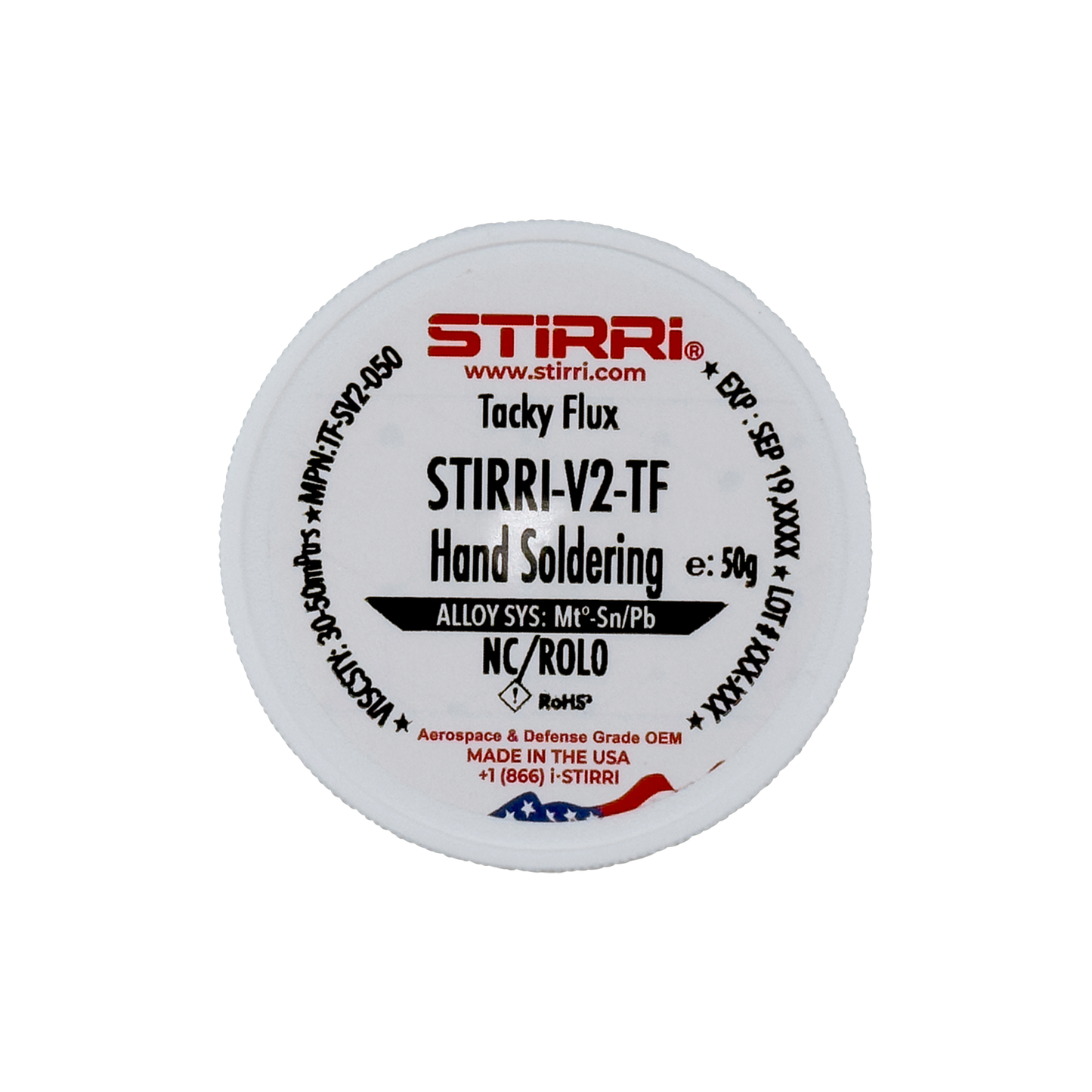

    STIRRI-V2-TF™ is a no-clean rosin-based MT soldering tacky paste flux for electronics repair and rework using Hot Air.

    Amber-Series tubes to provide for at least 24-months shelf life

    No-clean soldering tacky paste flux, rosin-based formulation with pine scent, designed for electronics repair and rework using hot air and MT alloys (Sn60/Sn62/Sn63 Mid-Temp/Military-Tech) and Hot Air station.

    V2 solder flux has right amount of solids to withstand moderate Hot Air action to complete the repair without many top-ups which can be a useful time/cost saving feature for professionals soldering all day for a living.

    – ROL0 flux classification
    – Fine-tuned for Tin/Lead applications by hot air
    – Clear residue
    – Excellent wetting compatibility on most board finishes
    – Doesn’t short components
    – Wide process window – continue where you left off at a later time, once heated the flux will flow again

    Product keynotes

    – Rosin-based, low activity no-clean tacky solder flux specifically designed for hand-operations with leaded alloys – manual Sn/Pb rework with hot-air. Suitable for entry level of training and any basic, readily available amateur soldering tools. Filling the workspace with a distinctive terpene/pine scent.

    – Mighty action – a noticeable booster for copper ions while wicking the workspace. Quickly breaks-up lead-free joints preparing workspace for leaded repair. Exceptional wetting – tames tin/lead alloy, puts an operator in control, solder magically flows where it has flow. Excellent tackiness – holds components in-place for “dancing” with hot air. Long process window – continue a project at a later time, once heated the flux will flow again.

    – Optimal viscosity – 30-50 (Malcom @ 10 RPM/25°C (x103mPa/s)) allowing smooth flow from a syringe. Halide-free (<0.05%). Surface insulation (SIR) resistant. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop). Loaded with fire-retardant properties step-activated as heat increases.

    – ROL0 classification – non-corrosive, doesn’t short circuits, can be left on board for multiple SMT assemblies. Clear residue is best to be removed by hot air, otherwise using foam swab and basic solvents like isopropanol (best practice is to clean all flux residues all the time to avoid board contamination or voltage leakage on circuits with high impedance, also non-activated residue may absorb moisture from air and subsequently cause corrosion).

    – Industrial air-syringe intended for pneumatic dispensing machines – to manually control the flow use a dispensing kit (plunger and tip sold separately). Do not remove the piston/stopper! Do not discard the original nozzle cap, tighten the cap while not using the flux – flux may dry out upon extended contact with air. Keep at a room temperature – do not refrigerate.

    Product Description

    Next generation REACH-compliant universal no-clean tacky paste flux for soldering electronics. Improved formula demonstrates mighty action, smooth flow from the syringe and excellent ability to hold components in place. Clear residue is fully translucent allowing unobstructed control over the soldering process. Contains QC-Aid™ optical tracer for an immediate visual contamination inspection highlighting residues in UV/blacklight. The flux has a pleasant non-chemical scent. REACH-compliant making soldering incredibly easy and fun without harming the environment or human health.

    Complete the assembly with STIRRI HydraCoat™ conformal nano-coating. HydraCoat shields the assembly in 8 seconds. PCB continues to work even if fully submerged!

    Strong points:

    - Industrial-grade wetting capabilities.
    - Excellent ability to hold components in place.
    - Clear residue resisting to turn brown under high-heat.
    - Not-corrosive. No-clean - can be left on PCB.
    - Slow burning ratio - long lasting.
    - QC-Aid™ for instant visual inspection of cleaning.
    - Pleasant non-chemical scent.
    - Environmentally/health friendly.

    STIRRI® is a modern prosumer product line made in the USA to satisfy demands for next generation high-end soldering chemicals.

    TACK & VISCOSITY: Contains sufficient amount of solids to stay put on the PCB - doesn’t spread over, but also not too thick - easy to clean. Holds components in-place yet allows for an easy repositioning by hot air. Smooth flow from the syringe - suitable for industrial component placement machines as well as handcraft rework and hobby use. Suspends BGA spheres creating a perfect activation environment for soldering leaded or lead-free solder balls or SMD solder paste - all-purpose flux!

    CLARITY & ODOR: Clear residue contains QC-Aid for instant PCB contamination inspection - the aid will glow in UV highlighting remaining residues for instant spot-cleaning. QC-Aid - Everyone can QC!™.  Cloud-free translucent material provides for a consistent unobstructed view of solder joints and IC pins while offering ultimate control over the soldering process and filling the air with pleasant non-chemical scent. Quick fix without fumes extractor will only make a workshop smell nice!

    LONGEVITY & RESIDUE: Maintains stable performance under extended exposure to heat without turning into a dark gooey goop. Suitable for multi-step assembly - get back to a project a day or two later, once heated the flux will flow again without dropping performance. Dispensed in an amber syringes protecting the flux from the harms of environment extending the shelf life up to 2 years - a single tube lasts for a very long time!

    EASY SOLDERING & DESOLDERING: Implements upgraded booster for copper ions, visually noticeable while wicking the workspace regardless of the alloy leaded or lead-free. Instant action - quickly wets lead-free or leaded alloys delivering perfect shining joints. Clear residue can be easily removed by hot air, foam swab or HydraSweep Isopropanol.

    Suitability

    Mid-temperature Hot Air hand-soldering repair/rework/assembly

    Designation

    ROL0 classification - no-clean and not corrosive. Halide-free (<0.05%). Surface insulation resistant. No copper mirror breakthrough. Low electrochemical migration (<1 decade drop)

    Viscosity

    30-50 mPa/s (Malcom @ 10 RPM/25ºC (x 10³mPa/s))

    Disclaimer

    The information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having relevant skills at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process and take safety measures. Manufacturer/resellers assume no liability for results obtained or damages incurred through the application of the data presented.

    Cleaning "No-Clean"

    “No-clean” indicates cleaning method as defined by IPC standard and does not mean that the flux leaves no residue. No-clean rather means that the flux can be left on PCB for several consecutive SMT assemblies but also won’t cause corrosion if left indefinitely. However, cleaning can be necessary and it is desirable. No-clean fluxes are easily removed using industrial solvents in ultrasonic devices or using commercially available flux residue removers like STIRRI HydraSweep™.

    Dispensing Kit

    This product does not include any Dispensing Kit - a separate purchase!

    Dispensing Kit is an add-on for manual dispensing, used to create a pressure with a plunger similarly to a medical syringe.

    Air syringes intended for pneumatic dispensing machines use a piston stopper instead of a plunger. Do not remove the piston as it delivers the best seal preventing contact with air!

    Compliance

    This material is certified REACH-compliant - does not use any raw materials from the REACH restricted list of substances of high concern.
