VS-UHF-305 T3-T6 - Sn96.5Ag3.0Cu0.5 lead-free halogen-free ultra-low-voiding no-clean rosin solder paste 3% silver SAC305 (ROL0)

    Ultra-low voiding lead-free halogen free SMD solder paste

      • Class

        NC/ROL0

        J-STD-005C

      • Stencil

        ~ 12 hours

        at 30-70% R/H @20-25ºC

      • Tack

        32-34

        Tack force g/cm

      • Print

        120-190

        Viscosity in Malcom mPA/s x10³ 10RPM @25ºC

      • Dispense

        100-150

        Viscosity in Malcom mPA/s x10³ 10RPM @25ºC
      1 1

      STIRRI®

      SP-SVF-020-305-3

      Mesh Type
      Packaging
      $16.32 USD
      $16.32 USD $16.32 USD
      Sale Sold out

      In stock

      STIRRI VS-UHF 305 - Sn96.5Ag3.0Cu0.5 no-clean lead-free ultra-low-voiding ZERO halogen rosin solder paste 3% silver (ROL0) SAC305

      - IPC designation: ROL0 (no-clean).

      - REACH-complaint LGA, BGA, CSP assembly.

      - Halogen-free per EN14582 method - ZERO-Halogen.

      - Ultra-Low voiding. Clear residue. Optimal viscosity.

      - Superior dispensing, stencil printing, pin transfer. Sharp definition at high-speeds.

      - Universal for most PCB finishes. Long stencil life

      - Easy to clean using IPA, solvents, water-based saponifiers, vapor degreaser or ultrasonic devices

      Suitability

      Lead-free halogen free applications

      Solder Paste Viscosity

      Values in Malcom @ 10 RPM/25ºC x10³ mPa/s
      Printing: 120-190
      Dispensing: 100-150

      Stencil Life

      Printer Operation

      Print Speed: 25-100 mm/sec

      Squeegee Pressure: 70-250g/cm of blade

      Under Stencil Wipe: Once every 10-25 prints, or as necessary

      Some adjustments may be necessary depending on process requirements

      Stencil Cleaning

      No-clean solder paste that can be left on the board for many SMT assemblies. For applications requiring cleaning, the paste can be cleaned using commercial residue removers.

      Automated cleaning systems for both stencil and misprinted boards. Manual cleaning using isopropyl alcohol (IPA), co-solvents and/or ultrasonic scrubbers, vapor degreaser.

      Do you make this paste untraceable - without QCA?

      UV light is for optional for QC certification only - not required for operating the paste.

      However, this material is also available untraceable - without QC-Aid™, meaning no specific optical UV-tracer has been deployed. Contact us for the MPN (Manufacturing Part Number) without UV-tracer.

      Storage and Handling

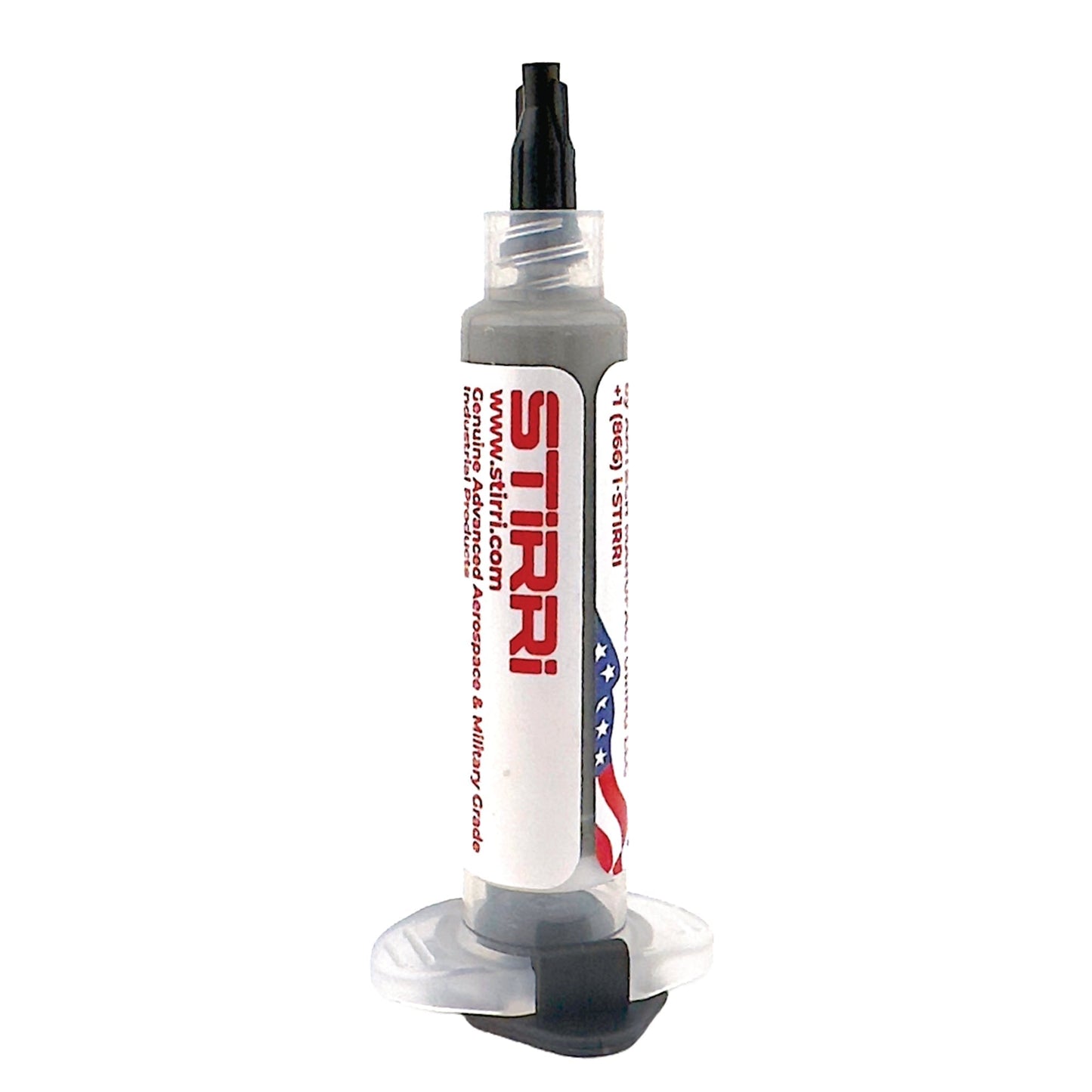

      To obtain the maximum shelf life STIRRI Soldering Paste & Liquid Solder™ should be stored in a refrigerator between 3-8°C (37-46°F). Unopened solder paste stored at room temperature, 25°C (77°F). Syringes and cartridges should be stored in the refrigerator vertically, dispensing tip pointing down.

      Allow 4-8 hours for solder paste to reach optimal operating temperature of 20-25°C (68-77°F). To avoid condensation inside solder paste - keep solder paste container sealed while warming the solder paste to operating temperature, otherwise moisture may end up inside the container and contaminate solder paste!

      NEVER FREEZE SOLDER PASTE!

      Safety Notice

      This product is designed for professional consumers. Information contained herein is based on technical data that we believe to be reliable and is intended for use by persons having technical skill, at their own risk. Consumers should make their own tests to determine the suitability of each product for their particular process. Manufacturer or distributors will assume no liability for results obtained or damages incurred through the application of the data presented - try on a small non-critical surface first!
